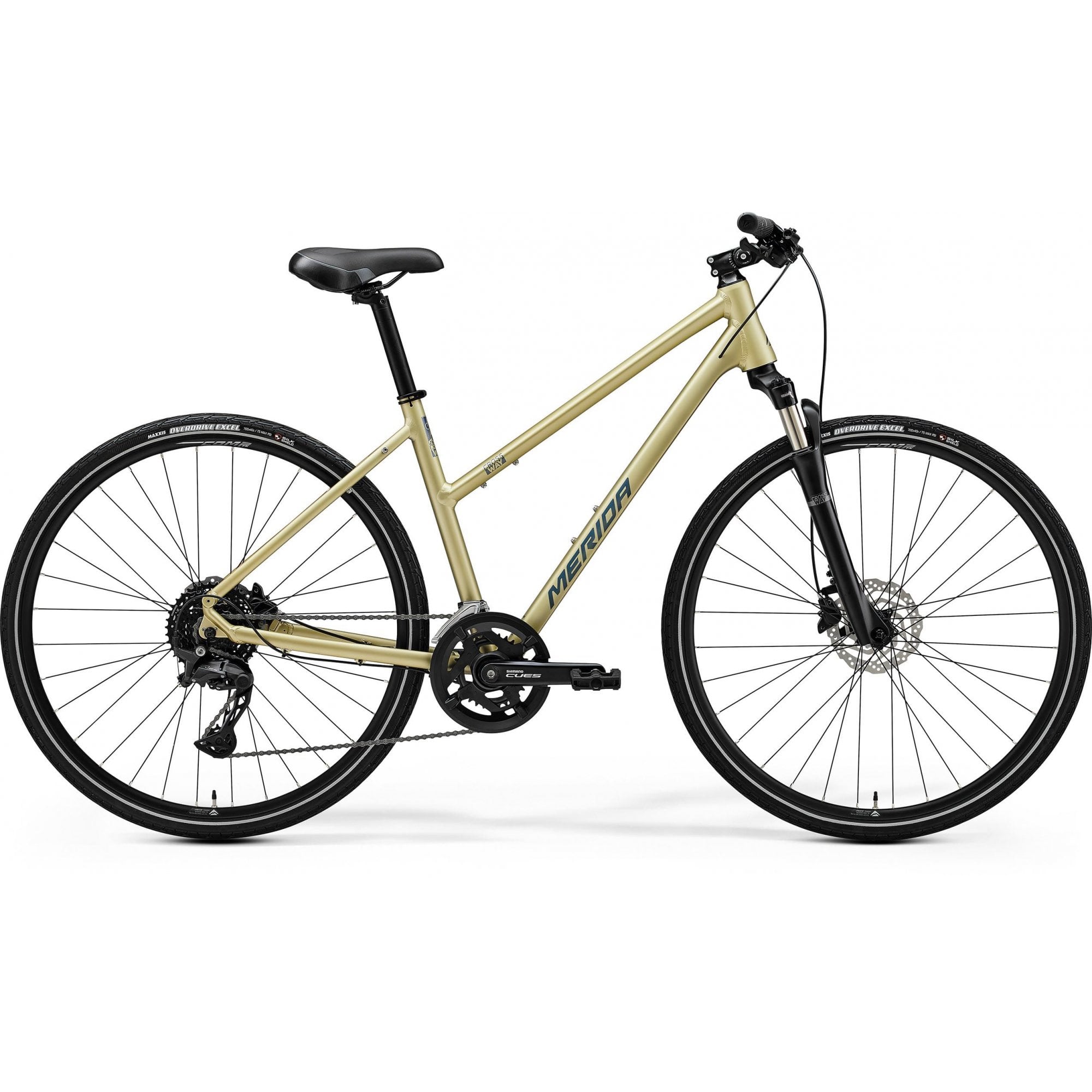

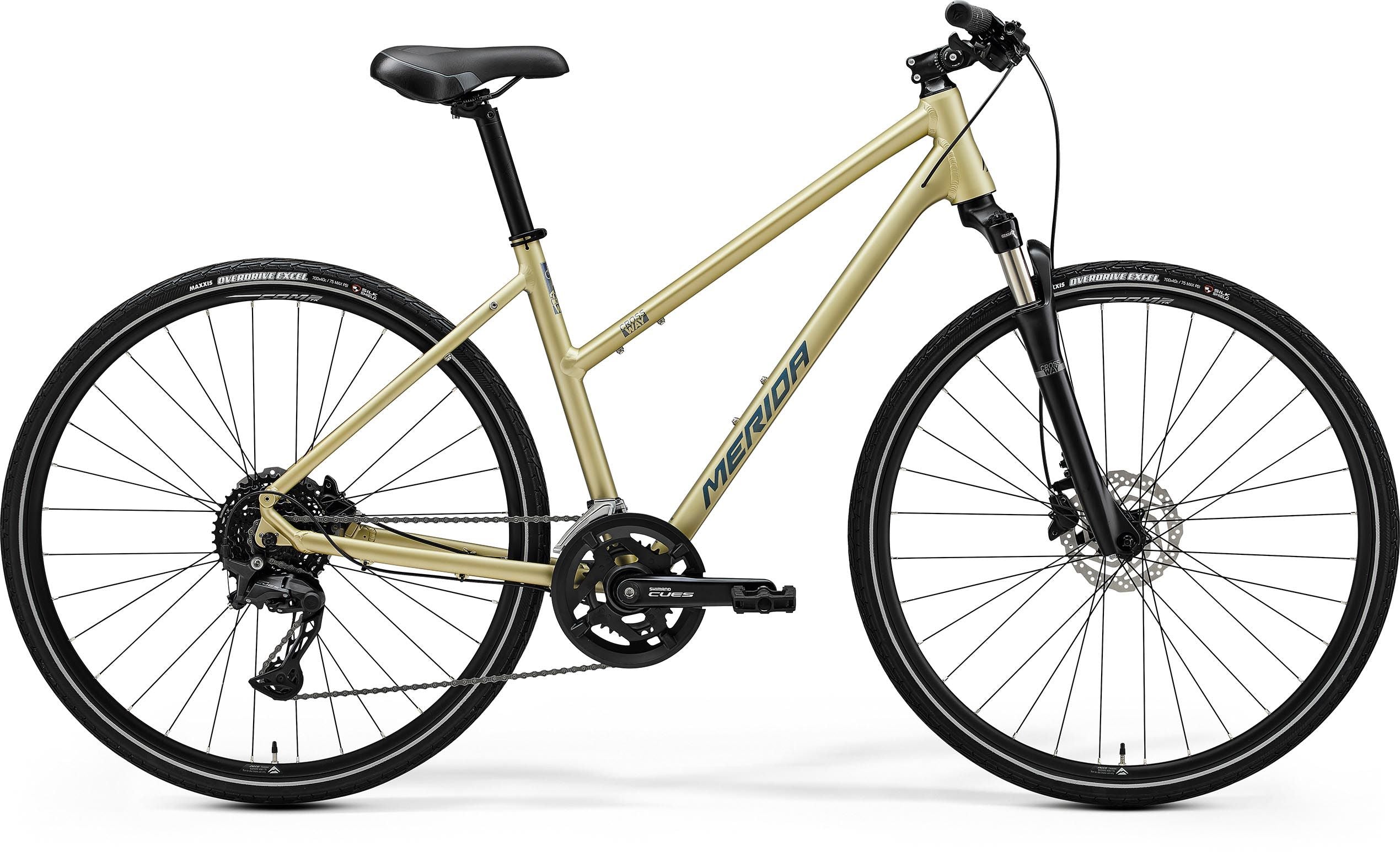

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
| Frameset | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
|---|---|
| Fork | SR Suntour NX1-DS-LO-700C-63; Coil; 63mm travel; Lockout; Max tyre size: 700x50C |
| Brakes | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Tyres | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield - Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
| Rear mech | Shimano CUES U6020 10S |
| Wheelset | Merida Comp TK; 20mm inner rim width; 17mm rim depth; aluminium |
| Headset | Merida M2346 Neck |
| Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Length - 95mm (2XS-XS-S-M), 110mm (L-XL) |
| Handlebar | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Shifters | Shimano CUES U6000 |
| Cassette | KMC xGlide |
| Chain | Shimano LG300; 11-39 teeth; 10 speed |
| Chainset | Shimano CUES U4010; 46-30 tooth chainset ; Aluminium; Crank length - 170mm (2XS/XS/S), 175mm (M/L/XL) |
| Bottom bracket | Shimano MT501 |
| Saddle | Merida Cross Sport |
| Seat post | Merida Expert; 30.9mm diameter; 15mm layback; 300mm (2XS/XS); 350mm (S/M): 400mm (L/XL) |
| Tape grips | Merida Expert EC |
| Front mech | Shimano CUES U6010 |
